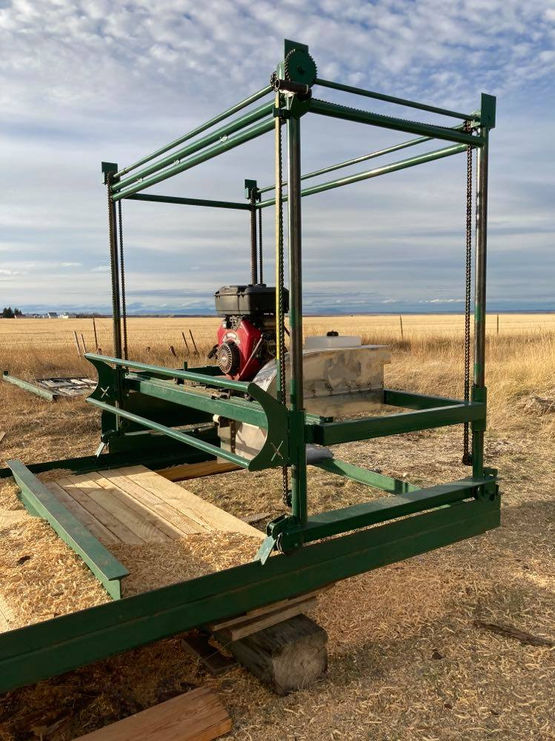

From log to lumber in the swing of a blade.
Specification
-
Engine: 22HP Honda GX690, electric start, gasoline.
-
Maximum Cut: 8 ½” vertically, and 8 ½” horizontally from either or both sides of the log, making possible 17” wide cuts.
-
Minimum mill capacity: 3” dia. x 48”L
-
Maximum mill capacity: 36”dia. for standard model, 51” dia. for XT (extra tall) model, x Length is infinite as our tracks have extensions available for any length configuration
-
Track: heavy duty fully welded, available in customizable length, trailer packages available, comes standard with 3 rail log deck, incorporates our unique Log Dogging system for cutting within 1 ½” of log rails
-
Blades: industrial grade tungsten carbide tipped, 21 ½” available in various configurations
-
Arbor/Mandrel: single piece billet machined
-
Bearings: dual high-speed ball bearings with cast iron flange housings
-
Transmission: cast iron (not aluminum) gear case with hardened gears and output shaft
Special Features of the Brand X Sawmill
-
Hand crafted in the USA and custom built to order,
-
Welded using high quality steel for strength and rigidity creating a smooth, accurate cut,
-
A superior dogging system that bites hard, is simple to use, and allows the operator to cut within 1 ½ “ of the log rails for minimal waste. These dogs allow you cut even the smallest logs,
-
Our track can be configured to an infinite length and comes standard with a three-rail log deck,
-
Heavy-duty track scrapers that prevent debris buildup on the track in the most extreme conditions,
-
Industrial quality carbide tipped saw blades available in various tooth counts,
-
A lap siding attachment comes standard with every mill,
-
Each mill has an on board sharpener with diamond stone for quick, easy sharpening on the go,
-
This sawmill is easy to use and has no fancy gadgets or instruments,
-
A detachable mill roof is available to protect the saw and operator from the elements,
-
Great customer service.
